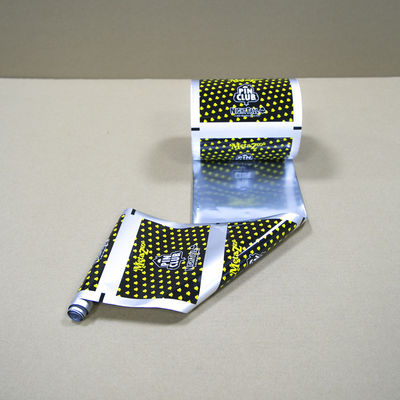

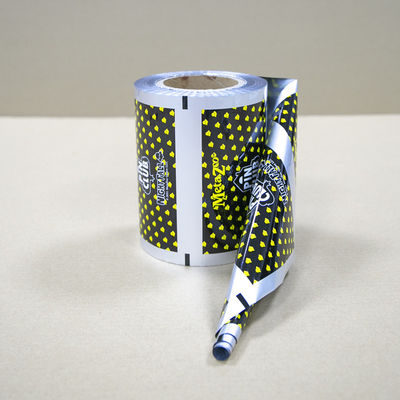

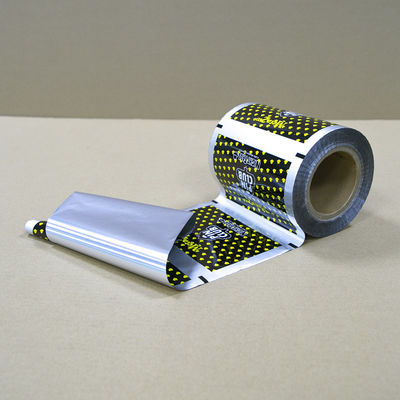

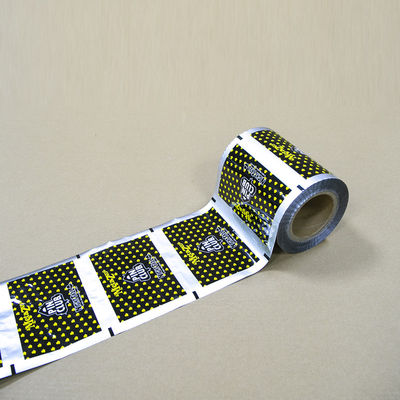

Pre-Printed AL / VMPET Composite Roll Stock 8-Color Pantone & GS1 Barcode

Place of Origin	Guangdong,China
Brand Name	Bright Pack
Certification	patent for invention、BRC、GRS
Model Number	B010

Product Details

Customization:

Support

Colour:

Up To 10 Colour Or No Printed

Odor Proof:

Yes

Custom Order:

YES.

Colors:

CMYK/Pantone

Sample:

Free

Puncture Resistant:

Yes

Packaging Type:

Bulk Pack

Quantity Per Pack:

100

Recyclable:

Yes

Quantity:

Pack Of 100 Bags

Bag Type:

Three Side Seal Stand Up Bag

Bpa Free:

Yes

Color:

Transparent

Height:

115 MM

Highlight:

GS1 Barcode Composite Roll Stock

8 Color Pantone Composite Roll Stock

Pre Printed Composite Roll Stock

Payment & Shipping Terms

Minimum Order Quantity

100pcs

Price

$3-3.5/kg

Packaging Details

Export special carton packaging and plate

Delivery Time

11-13work days

Payment Terms

T/T,Western Union

Supply Ability

200000pcs/day

Product Description

Pre-Printed AL / VMPET Composite Roll Stock 8-Color Pantone & GS1 Barcode

Product Attributes

Attribute	Description	Reference
Material Structure	3-5 layers coextruded with Aluminum Foil (AL) and Vacuum Metallized PET (VMPET) as core barrier layers, laminated with PE/PP for heat sealing.	1
Printing Technology	8-color gravure printing with Pantone® C/U/TPX color matching (±0.1mm alignment accuracy), supporting dynamic QR codes and GS1-128 barcodes.	1 6 7
Barrier Performance	Oxygen Transmission Rate (OTR) ≤0.05 cm³/m²day; Water Vapor Transmission Rate (WVTR) ≤0.5 g/m²24h (38°C, 90% RH).	1
Certifications	ISO 9001:2015, FDA 21 CFR, EU 1935/2004 (food contact compliance), GS1 Global Traceability Standards.	1 9 10
Applications	High-end food pouches (coffee, snacks), pharmaceutical blister packs, luxury cosmetic packaging.	1
Sustainability	Recyclable PET/AL layers; complies with EU Ecolabel and REACH regulations. Optional 30% post-consumer recycled content.	1 11

Product Specifications

Parameter	Specification	Reference
Thickness Range	80-250 microns (customizable for vertical/horizontal form-fill-seal machines).	1
Tensile Strength	≥40 MPa (machine direction) / ≥35 MPa (transverse direction).	1
Heat Seal Strength	8-12 N/15mm (compatible with LDPE/LLDPE sealing layers; temperature: 120-160°C).	1
Puncture Resistance	≥60 N (tested per ASTM D5748; ideal for sharp-edged product packaging).	1
Printing Resolution	175-200 LPI (line screen); supports 8-color Pantone® Solid Coated/Uncoated and metallic inks.	6 7
Barcode Compliance	GS1-128 (ISO/IEC 15417) and GS1 DataMatrix (ISO/IEC 16022) for batch/expiry date traceability.	9 10 11
Roll Dimensions	Width: 200-1200 mm; core ID: 3"/6"; max roll weight: 100 kg.	1
Temperature Range	-40°C to 121°C (retort-safe for sterilization and frozen storage).	1
MOQ & Lead Time	MOQ 30,000 linear meters; production lead time: 15-25 days.	1
