High-Barrier Aluminum Foil Lamination Film Moisture & Oxygen Protection

Brand Name:	Bright Pack
MOQ:	500kg
Price:	$3.2-3.8/kg
Packaging Details:	Export special carton packaging and plate
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong,China

Certification:

patent for invention、BRC、GRS、ISO、FDA、QC

Logo:

Supported

Uv Protection:

Yes

Industrial Use:

Food

Shelf Life:

6-12 Months

Width:

10-100cm Or Custom

Carton:

49x32x29 CM Or Custom

Oem:

Support

Thickness:

0.01-0.2mm

Payment Methid:

T/T

Web:

Www.verticalpackagingmachinery.com

Order Quantity:

Custom

Pulp Material:

Straw Pulp

Tear Resistant:

Yes

Certifications:

FDA Approved For Food Contact.

Weight Tolerance:

<±1%（Include）

Supply Ability:

2000kg/day

Highlight:

Oxygen Protection Aluminum Foil Lamination Film

Moisture Protection Aluminum Foil Lamination Film

High Barrier Aluminum Foil Lamination Film

Product Description

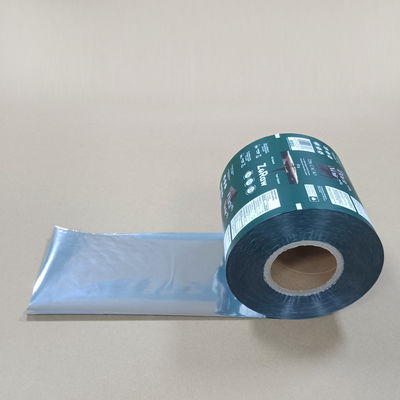

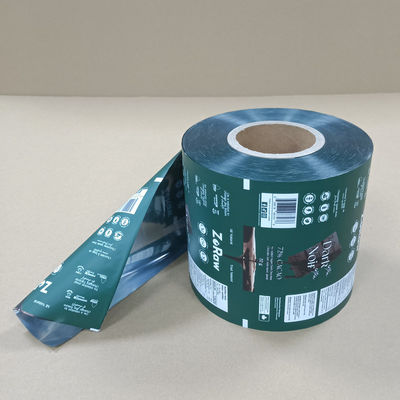

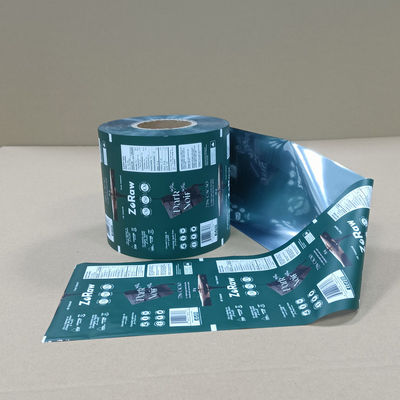

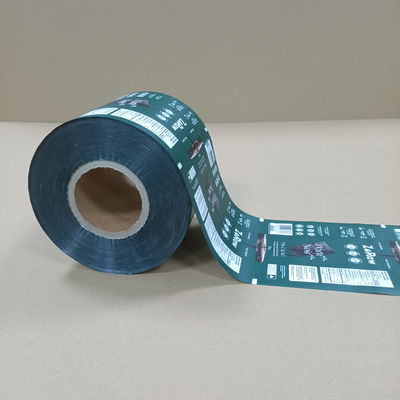

High-Barrier Aluminum Foil Lamination Film Moisture & Oxygen Protection

Engineered for critical barrier applications, our aluminum foil lamination film delivers unmatched protection against moisture, oxygen, and light. This multi-layer composite structure combines high-purity aluminum foil with specialized polymer layers to create an impermeable shield, extending product shelf life while maintaining packaging integrity. Ideal for pharmaceutical, sensitive food, and electronic moisture barrier applications.

Key Advantages

Ultra-High Barrier - Oxygen Transmission Rate (OTR) < 0.05 cc/m²/day | Moisture Vapor Transmission Rate (MVTR) < 0.02 g/m²/day
Robust Structure - Puncture-resistant with superior tensile strength
Wide Temperature Tolerance - Stable performance from -60 °C to 150°C
Light-Proof - Complete UV/visible light blockage (100% opacity)
Print-Ready Surface - Accepts flexographic and gravure printing

Primary Applications

Pharmaceutical blister packs & sachets
Military/MRE food rations
Lithium battery moisture barriers
Coffee & nutraceutical packaging

Material Architecture

Layer	Material Options	Function
Outer Layer	PET/OPP	Abuse resistance & print surface
Adhesive Layer	Polyurethane/Polyolefin	Foil bonding
Barrier Core	Aluminum foil (99.5% purity)	Primary barrier
Sealant Layer	LDPE/CPP	Heat-seal capability
