Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
  • Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
  • Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
  • Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
  • Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
  • Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
  • Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier

Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier

Place of Origin Guangdong,China
Brand Name Bright Pack
Certification patent for invention、BRC、GRS
Model Number B010
Product Details
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Highlight:

0.05 OTR Barrier Composite Film Roll

,

0.05 OTR Transparent Composite Film Roll

,

Multi-Layer Transparent Composite Film Roll

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
$3-3.5/kg
Packaging Details
Export special carton packaging and plate
Delivery Time
11-13work days
Payment Terms
T/T,Western Union
Supply Ability
200000pcs/day
Product Description
Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier
Product Attributes
Attribute Description Reference
Material Structure Multi-layer composite (typically 3-7 layers): PET/PP outer + SiOx/AlOx barrier + PE/PP sealant layer 5 8
Transparency >90% visible light transmittance (VLT); <2% haze 3 6
Barrier Performance - Oxygen Transmission Rate (OTR): ≤0.05 cm³/m²/day (ASTM F1249)
- Water Vapor Transmission Rate (WVTR): ≤0.1 g/m²/day (ASTM D3985)		 1 5
Functional Coating Optional: UV-blocking (>90% UV-A/UV-B), anti-fog (contact angle >90°), or anti-static (surface resistivity ≤10⁹ Ω/sq) 3 7
Sealability Heat-sealable inner layer (PE/PP); seal strength: 5-15 N/15mm; temperature range: 120°C-180°C 7 8
Flexibility & Durability Puncture resistance: ≥30 N; elongation at break: 150-300% 5 9
Applications Food packaging (fresh produce, snacks), flexible electronics (OLED displays), medical device barrier films 6 7
Technical Specifications
Parameter Specification Reference
Thickness 12-250 μm (standard: 25 μm, 50 μm, 100 μm) 5 8
Width 150-1650 mm (customizable for VFFS/HFFS machines) 5
Roll Dimensions - Core ID: 76 mm (3") or 152 mm (6")
- Length: 1000-5000 meters		 5 7
Optical Properties - VLT: ≥90% @550 nm
- Haze: ≤2%
- Gloss: >95 GU (60°)		 3 6
Barrier Metrics - OTR: ≤0.05 cm³/m²/day @23°C, 0% RH
- WVTR: ≤0.1 g/m²/day @38°C, 90% RH		 1
Mechanical Strength - Tensile strength: MD ≥50 MPa, TD ≥45 MPa
- Tear resistance: ≥50 N/mm		 5 9
Certifications FDA 21 CFR, EU 10/2011, ISO 22000, RoHS, REACH 7
Add-On Options - Custom printing (flexo/gravure, ≤10 colors)
- Micro-perforations
- Biodegradable variants (PLA-based)		 6 8
Packaging & MOQ - Dust-free rolls in anti-static wrapping
- MOQ: 500 kg (bulk orders); lead time: 10-20 days

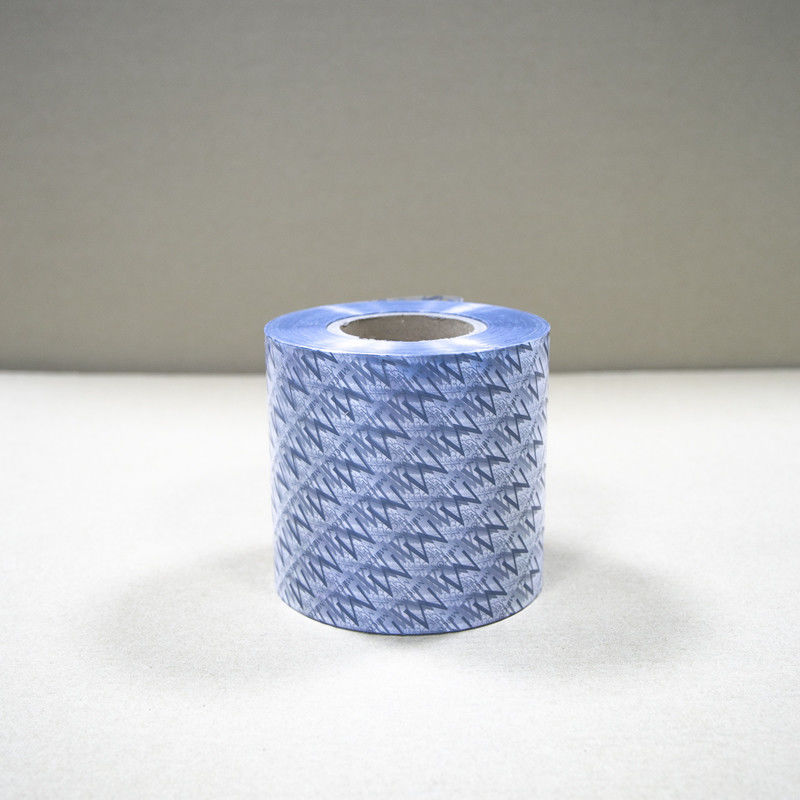

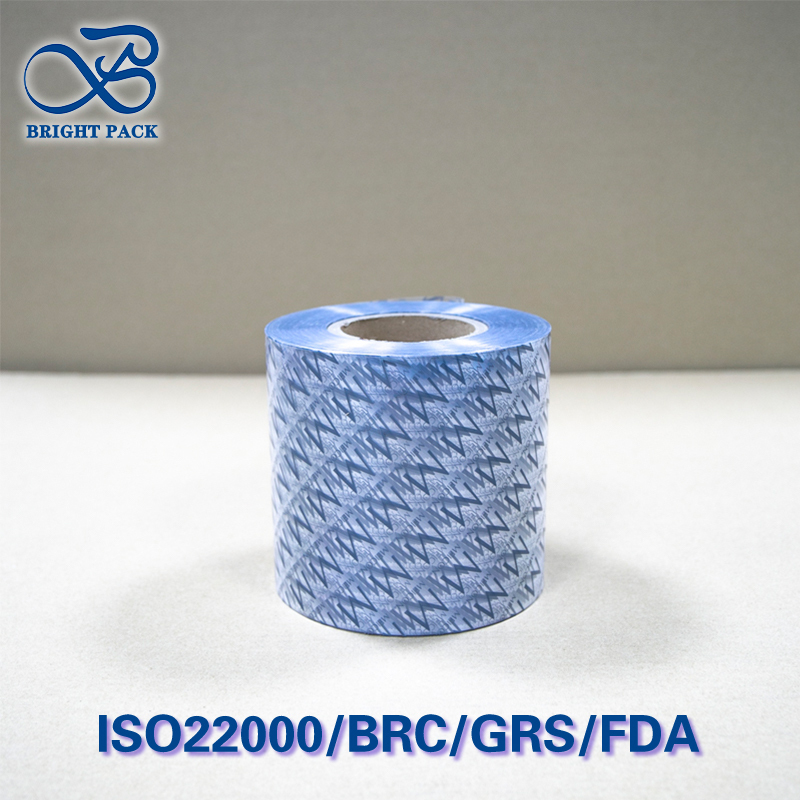

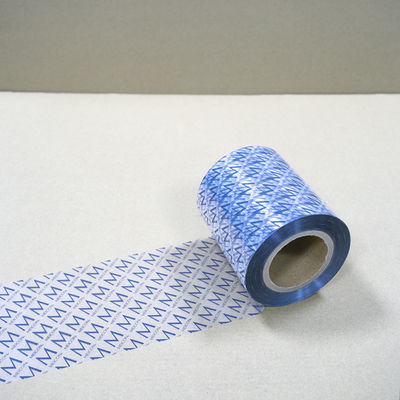

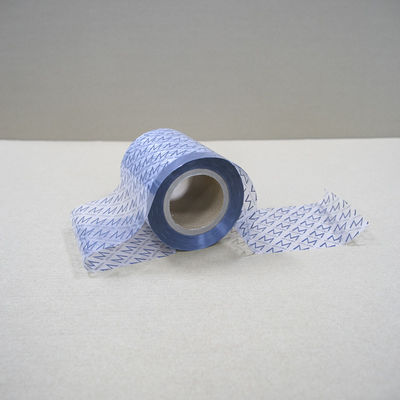

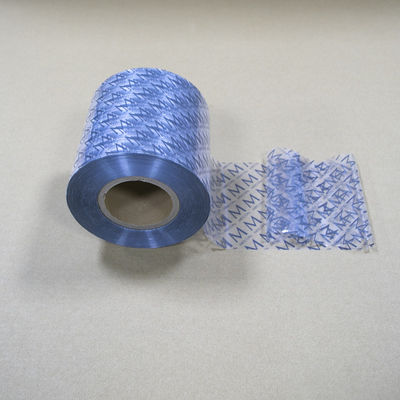

Product Images
Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 0 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 1 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 2 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 3 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 4 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 5 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 6 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 7 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 8 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 9 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 10 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 11 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 12 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 13 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 14 Multi-Layer Transparent Composite Film Roll 0.05 OTR Barrier 15
