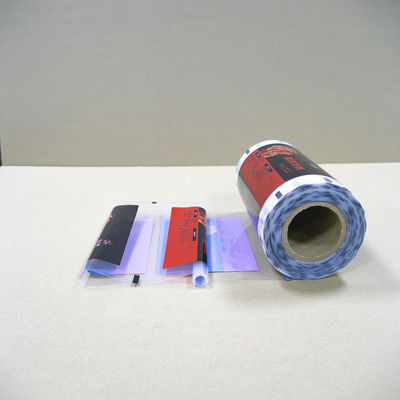

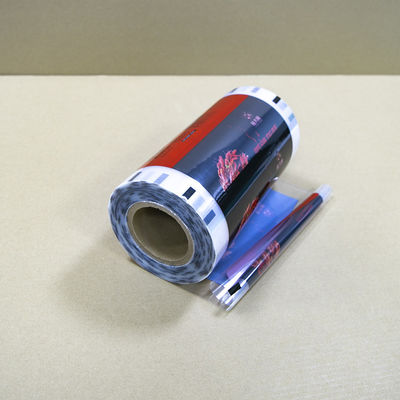

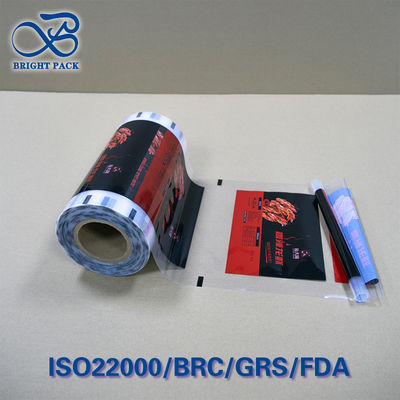

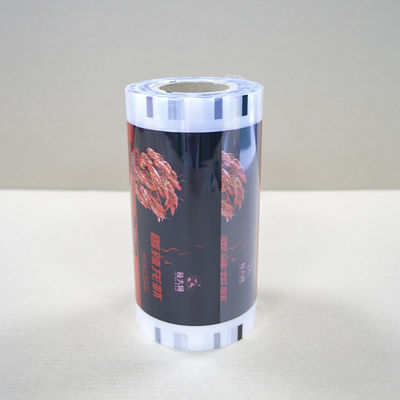

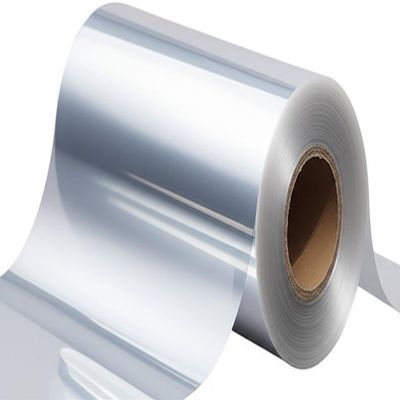

​High Barrier Prepared Meal Composite Roll Film For Extended Shelf Life Vacuum Sealing

​High Barrier Prepared Meal Composite Roll Film For Extended Shelf Life Vacuum Sealing

Brand Name: Bright Pack
Model Number: B010
MOQ: 100pcs
Price: 0.03-0.1usd/pc
Payment Terms: T/T,Western Union
Supply Ability: 200000pcs/day
Detail Information
Place of Origin:
Guangdong,China
Certification:
patent for invention、BRC、GRS
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Packaging Details:
Export special carton packaging and plate
Supply Ability:
200000pcs/day
Highlight:

Prepared Meal Composite Roll Film

,

​High Barrier Composite Roll Film

Product Description
High Barrier Prepared Meal Composite Roll Film For Extended Shelf Life Vacuum Sealing
Material Composition & Barrier Properties
Attribute Description Reference
Material Composition Multi-layer co-extruded structure (e.g., PA/EVOH/PE, PET/AL/PE) with EVOH or aluminum foil as the primary barrier layer 6 7 9
Barrier Properties
  • OTR (Oxygen Transmission Rate): ≤0.5 cm³/m²*day (23°C, 0% RH)
  • WVTR (Water Vapor Transmission Rate): ≤1.0 g/m²*day (38°C, 90% RH)
6 9
Functional Performance
Temperature Resistance -40 °C to 121°C (suitable for freezing, retorting, and hot-filling) 4 7
Vacuum Compatibility Maintains seal integrity under negative pressure 9
Puncture Resistance ≥30 N (protects against sharp food contents) 7
Mechanical Strength
Tensile Strength ≥150 MPa (MD), ≥120 MPa (TD) 9
Elongation at Break ≥80% 7
Safety & Compliance
Complies with FDA 21 CFR, EU 10/2011, ISO 22000, and RoHS for direct food contact 6 9 10
Processing Features
Heat Sealability Seals at 130-160°C (PE layer; VFFS machine compatible) 9
Printability Corona-treated surface supports high-resolution flexo/gravure printing 10
Technical Specifications
Parameter Specification Reference
Thickness 50-200 μm (customizable; EVOH/Al layer: 5-20 μm) 6 9
Width 200-1,300 mm (extendable to 1,500 mm) 6 9
Roll Dimensions
  • Core Size: 3" (76 mm) or 6" (152 mm)
  • Max. Roll Weight: 100 kg
4 7 9
Physical Properties
  • Density: 1.14-1.43 g/cm³
  • Shrinkage: ≤2.5% (100°C, 30 min)
7 9
Sustainability
  • Recyclability: Mono-PE variants available for single-stream recycling
  • Carbon Footprint: ≤1.8 kg CO₂/kg film (bio-PE options)
6 9 10
Supply Parameters
  • MOQ: 500 kg (bulk orders)
  • Lead Time: 15-25 days (post-sample approval)
  • Packaging: Weatherproof cartons with EPE foam
6 9 10 11
Product Images
High barrier composite roll film sample Composite film cross-section showing layers Roll film on industrial packaging machine Vacuum-sealed meal packaging sample Film performance testing in lab environment Printed composite film samples Film roll packaging and labeling Heat sealing demonstration Barrier film puncture resistance test Industrial roll film production line Film thickness measurement Oxygen barrier testing equipment Composite film sample close-up Retort pouch testing Film roll storage warehouse Quality control inspection of film
