High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
  • High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
  • High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
  • High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
  • High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR

High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR

Place of Origin Guangdong,China
Brand Name Bright Pack
Certification patent for invention、BRC、GRS
Model Number B010
Product Details
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Highlight:

High Barrier PE Composite Roll Film

,

Recyclable PE Composite Roll Film

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
$3-3.5/kg
Packaging Details
Export special carton packaging and plate
Delivery Time
11-13work days
Payment Terms
T/T,Western Union
Supply Ability
200000pcs/day
Product Description
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
Product Attributes
Attribute Description Reference
Material Structure 3-layer coextruded composite: Aluminum Foil (AL, ≥99.5% purity) + Adhesive Layer + Polyethylene (PE) sealing layer. Optimized for high oxygen/moisture barrier. 3
OTR/WVTR Oxygen Transmission Rate (OTR) ≤0.05 cm³/m²*day; Water Vapor Transmission Rate (WVTR) ≤0.5 g/m²*24h (38°C, 90% RH). 3 6
Certifications FDA 21 CFR Part 177 (food contact compliance), ISO 22000 (food safety), EU 1935/2004 (migration limits). 7 10
Thermal Resistance Retort-safe up to 121°C; compatible with autoclave sterilization and frozen storage (-40°C). 3 5
Surface Finish Matte or glossy options; supports 8-color Pantone® gravure printing (±0.1mm accuracy). 6
Applications High-temperature retort food packaging (sauces, ready-to-eat meals), pharmaceutical blister packs, coffee/nut vacuum sealing. 3 5
Sustainability Recyclable PE layer; optional 30% post-consumer recycled PE (GRS-certified). Complies with EU SUP Directive. 3 5
Product Specifications
Parameter Specification Reference
Thickness Range 80-250 μm (customizable for vertical/horizontal form-fill-seal machines). 3 6
Tensile Strength ≥40 MPa (machine direction) / ≥35 MPa (transverse direction). 2 5
Heat Seal Strength 8-12 N/15mm (sealing temperature: 120-160°C; compatible with LDPE/LLDPE). 5
Puncture Resistance ≥60 N (ASTM D5748; ideal for sharp-edged products like frozen meat). 2 6
Layer Composition AL (7-9 μm) / Adhesive (3-5 μm) / PE (50-80 μm). 3
Temperature Range -40°C to 121°C (retort sterilization and cryogenic storage compatible). 3 5
Roll Dimensions Width: 200-1200 mm; core ID: 3"/6"; max roll weight: 100 kg. 2 6
Migration Limits Pb ≤0.01 ppm, Cd ≤0.002 ppm; total migration ≤10 mg/dm² (FDA/EU compliant). 7 10
MOQ & Lead Time MOQ 30,000 linear meters; production lead time: 15-25 days. 6

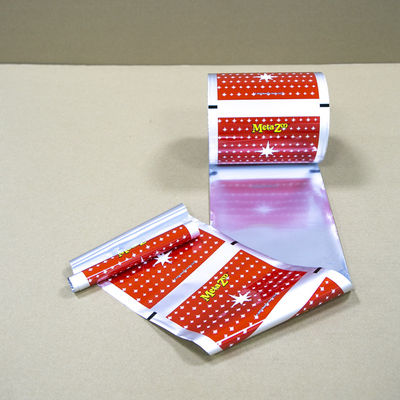

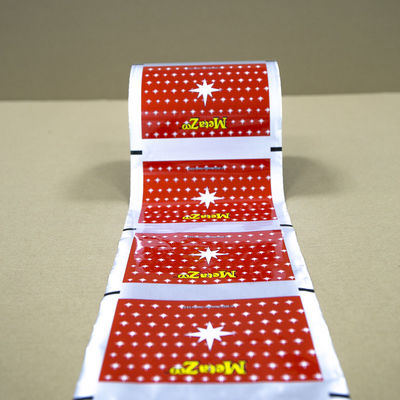

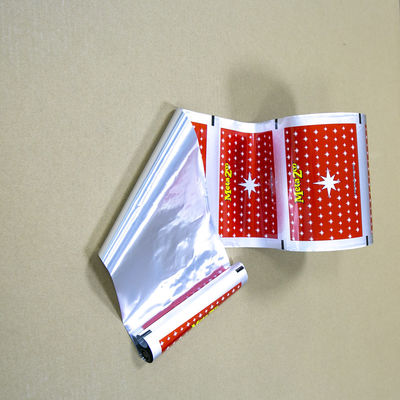

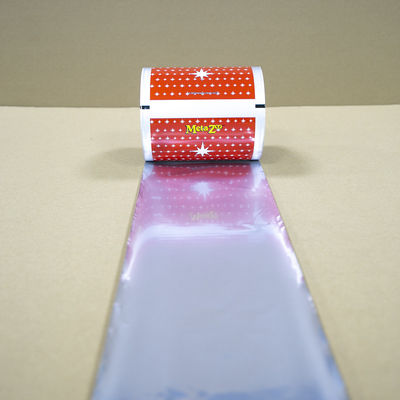

Product Images
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 0 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 1 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 2 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 3 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 4 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 5 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 6 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 7 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 8 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 9 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 10 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 11 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 12 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 13 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 14 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 15 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 16 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 17 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 18 High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR 19
