High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified
High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified

High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified

Place of Origin Guangdong,China
Brand Name Bright Pack
Certification patent for invention、BRC、GRS
Model Number B010
Product Details
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Highlight:

High-Barrier PE/PA composite film

,

Ready-to-eat meal packaging film

,

BRCGS certified aluminum foil film

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
$3-3.5/kg
Packaging Details
Export special carton packaging and plate
Delivery Time
11-13work days
Payment Terms
T/T,Western Union
Supply Ability
200000pcs/day
Product Description
High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified
Product Attributes
Attribute Specification
Material Composition 3-layer structure: VMPET (vacuum-metallized PET, 12-30 µm) / Adhesive layer / CPP sealant (30-100 µm). Metallization thickness: 350-400Å for enhanced oxygen barrier
Barrier Performance
  • Oxygen Transmission Rate (OTR): ≤0.5 cm³/m²*day (ASTM D3985)
  • Moisture Vapor Transmission Rate (MVTR): ≤0.8 g/m²*day (ASTM E96)
Printing & Surface
  • 8-color Pantone pre-printing: ±0.1mm registration accuracy, compliant with Pantone Color Bridge standards
  • Dynamic QR/GS1 barcodes: GS1-128 or EAN-13 formats for global logistics traceability
Mechanical Strength
  • Tensile Strength (MD/TD): ≥45 MPa / ≥40 MPa (ISO 527-3)
  • Puncture Resistance: ≥25 lbf (ASTM F1306), suitable for sharp-edged crayfish shells
Thermal Resistance
  • Heat Seal Range: 120-160°C (compatible with VFFS machines at 150 m/min)
  • Retort Compatibility: Withstands 121°C sterilization for 30 minutes
Certifications
  • BRCGS Packaging Standard (food safety)
  • FDA 21 CFR 177.1520 (food-grade CPP)
Anti-Static & Safety
  • Surface Resistivity: ≤10¹² Ω/sq (ASTM D257), prevents powder adhesion during filling
  • Migration Compliance: Pb/Cd ≤0.5 ppm (EU 10/2011)
Sustainability
  • 30% Recycled CPP Content (GRS-certified)
  • EU Ecolabel compliant (carbon footprint reduced by 20%)
Customization
  • Width: 200-1,500 mm (±0.3% tolerance)
  • Thickness: 50-200 µm (±5%)
Product Specifications
Parameter Details
Printing Compatibility
  • Pre-printing Layers: Supports 8-color flexographic printing with UV-curable inks (migration ≤0.1 mg/L)
  • Barcode Precision: GS1-compliant 600 DPI resolution for dynamic QR codes
Optical Properties
  • Gloss Level: ≥85 GU (60° angle, ASTM D2457)
  • Light Blocking: ≤5% transmittance (visible spectrum)
Heat Seal Performance
  • Seal Strength: ≥4.0 N/15mm (JIS Z0238)
  • Hot Tack Strength: ≥2.8 N/15mm (ASTM F2029)
Compliance Testing
  • Gamma Irradiation Resistance: 15-25 kGy (ISO 11137)
  • Halal/Kosher Certification: Available for Middle Eastern markets
Packaging & Logistics
  • MOQ: 2,500 rolls
  • Delivery: Vacuum-sealed on 3"/6" paper cores, palletized (1,200 × 800 × 1,500 mm)

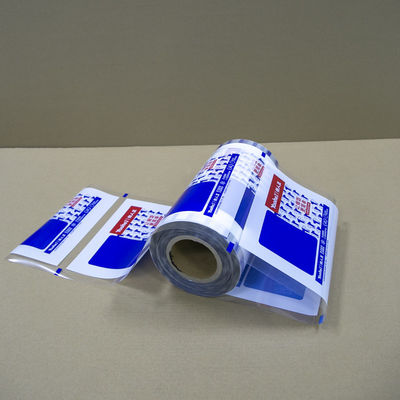

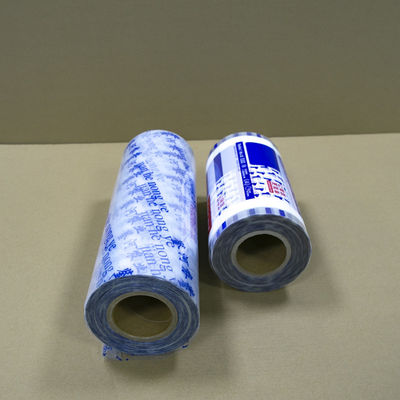

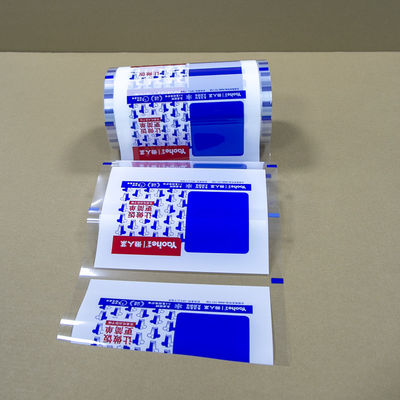

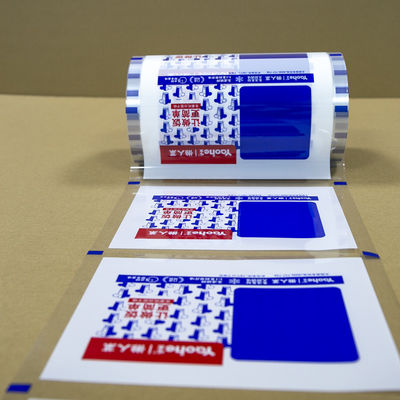

Product Images
High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 0 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 1 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 2 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 3 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 4 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 5 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 6 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 7 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 8 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 9 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 10 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 11 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 12 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 13 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 14 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 15 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 16 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 17 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 18 High-Barrier PE/PA Composite Roll Film For Ready-to-Eat Meals | ≤0.3 Cm³/m²·day OTR & BRCGS Certified 19
