High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
  • High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
  • High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
  • High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
  • High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
  • High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
  • High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​
High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​

High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​

Place of Origin GuanDong China
Brand Name Bright Pack
Certification GRS/BRC/ISO/FDA/FSC etc.
Product Details
Packaging Type:
Bulk Pack
Height:
115 MM
Oem:
Support
Usage:
Food Packaging
Color:
Silver
Material:
Aluminum Foil
Adhesive Type:
Food Grade Hot Melt Adhesive
Custimization:
Support
Recyclable:
Yes
Model:
Heat-sealed Roll Film For Cup
Barrier Properties:
Moisture-proof, Oxygen-proof
Sealing:
Heat Seal
Thickness:
0.01mm-0.2mm
Quantity Per Pack:
100
Surface Handling:
Embossing
Highlight:

Customizable Packaging Film

,

High Barrier Packaging Film

,

Multi Layer Protection Packaging Film

Payment & Shipping Terms
Minimum Order Quantity
5000kg
Price
US$3-5/PCS
Packaging Details
Export special carton packaging and plate
Delivery Time
5-10work days
Payment Terms
T/T,Western Union
Supply Ability
100 tons/day
Product Description
High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics
1g-50kg Customizable FDA & ISO Certified
Product Specifications
Parameter Technical Data
Material Structure PET (12μm)/AL (9μm)/EVOH (15μm)/PE (50μm) + anti-static layer
Barrier Performance
  • WVTR: ≤0.05 g/m²/day (38°C/90% RH, ASTM F1249)
  • OTR: ≤0.3 cc/m²/day (23°C/50% RH, ASTM D3985)
Capacity Range 1g (microelectronic components) - 50kg (bulk freeze-dried food)
Seal Strength 18-25 N/15mm (peelable seals for medical trays)
Temperature Resistance -70°C (cryogenic) to 135°C (autoclave sterilization)
Surface Resistivity 10³-10¹² Ω/sq (customizable for ESD-sensitive electronics)
Roll Dimensions
  • Width: 150-1200mm
  • Core: 3"/6" industrial cores with anti-slip coating
Printing 10-color HD flexo printing ±0.1mm accuracy, metallic inks available
Compliance EU 10/2011, China GB 9685, USP Class VI (medical grade)

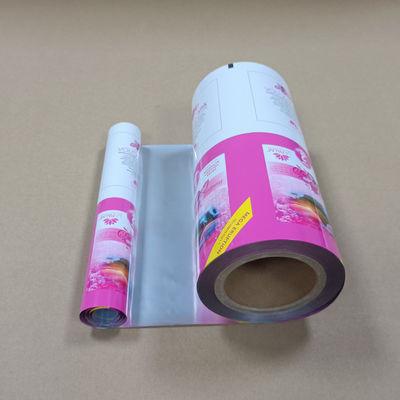

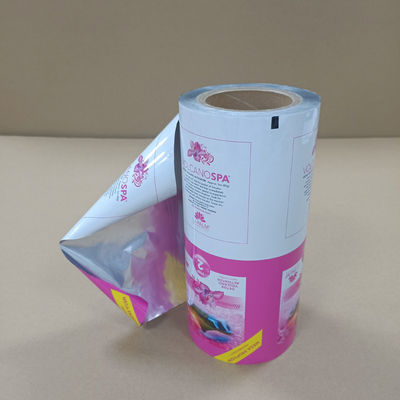

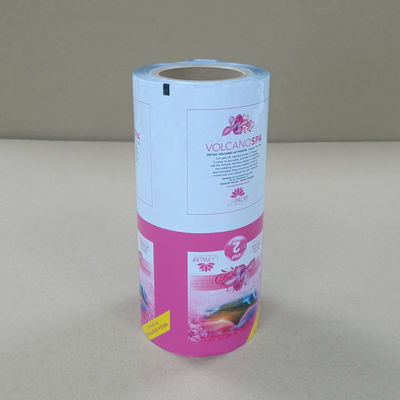

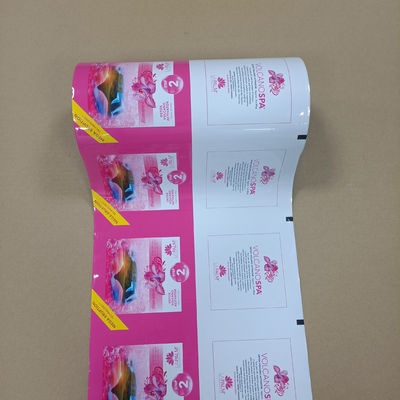

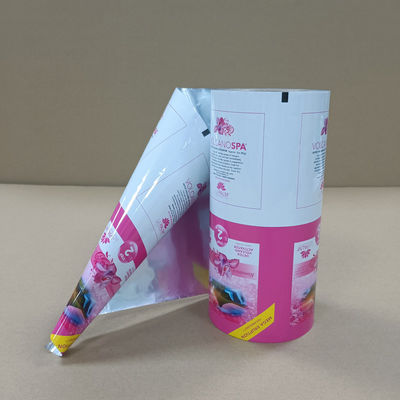

Product Images
High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 0 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 1 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 2 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 3 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 4 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 5 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 6 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 7 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 8 High-Barrier Packaging Film Multi-Layer Protection For Food / Medical / Electronics 1g-50kg Customizable FDA & ISO Certified​ 9

Tags:

aluminium mylar foil,

GRS BRC Snack Packaging Film,

mylar aluminium
