Thermal Insulation Aluminum Foil Roll Reflective Coating & ASTM E96 Compliance

Brand Name: Bright Pack
Model Number: B010
MOQ: 100pcs
Price: 0.03-0.1usd/pc
Payment Terms: T/T,Western Union
Supply Ability: 200000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong,China
Certification:
patent for invention、BRC、GRS
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Packaging Details:
Export special carton packaging and plate
Supply Ability:
200000pcs/day
Highlight:

Thermal Insulation Aluminum Foil Roll

,

Reflective Coating Aluminum Foil Roll

,

ASTM E96 Aluminum Foil Roll

Product Description
Thermal Insulation Aluminum Foil Roll Reflective Coating & ASTM E96 Compliance
Product Attributes
Attribute Specification
Material Composition Aluminum foil (99.45% purity) laminated with reflective PET coating (≥97% reflectivity) and reinforced with woven fiberglass for tear resistance. Optional XPE foam backing for enhanced thermal insulation.
Thermal Performance
  • R-value: 6.0 per inch (ASTM C518)
  • Heat reflectivity: ≥97% (ASTM C1371)
  • Emissivity: ≤0.03 (ASTM E408)
Barrier Properties
  • Moisture Vapor Transmission Rate (MVTR): ≤0.1 g/m²*day (ASTM E96)
  • Flame resistance: UL 723 Class A rating
Mechanical Strength
  • Tensile strength: ≥80 MPa (MD), ≥100 MPa (TD)
  • Puncture resistance: ≥5.0 J/mm
  • Temperature range: -40°C to 150°C
Certifications
  • ASTM E96 (moisture barrier)
  • UL 723 (fire safety)
  • EU Construction Products Regulation (CPR) Class B-s1,d0
Sustainability
  • Recyclability: 100% recyclable aluminum core
  • GRS-certified recycled PET coating (≥30% post-consumer content)
MOQ & Logistics
  • MOQ: 3,000 rolls (standard), 5,000 rolls (custom widths)
  • Vacuum-sealed with desiccant, palletized (1,200 × 800 × 1,500 mm)
Product Specifications
Parameter Details
Dimensions
  • Width: 100-2,800 mm (±0.5% tolerance)
  • Thickness: 80-200 μm (adjustable for construction/industrial use)
Layer Configuration Reflective PET coating (12-15 μm) / Aluminum foil (50-70 μm) / Fiberglass reinforcement (20-30 μm)
Temperature Tolerance
  • Storage: -40°C to 50°C
  • Operation: -30°C to 150°C
  • Fire resistance: 300°C for 2 hours (UL 723)
Surface Properties
  • Gloss level: 90-120 GU (60° angle)
  • Anti-static coating: ≤10¹¹ Ω/sq surface resistivity
Compliance Testing
  • Accelerated aging: 85°C/85% RH for 30 days (≤5% performance loss)
  • Heavy metals: Pb/Cd ≤5 ppm (EU 10/2011)
Packaging & Delivery
  • Core ID: 76 mm (3") or 152 mm (6")
  • Lead time: 15-25 days
  • HS Code: 7607.20.90

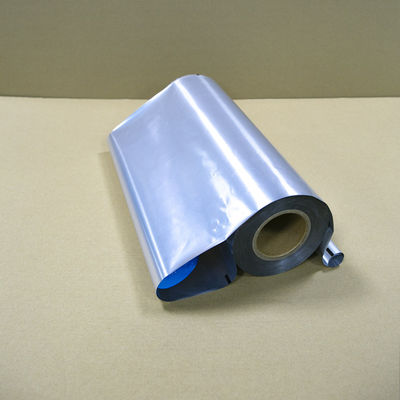

Thermal insulation aluminum foil roll showing reflective surface
Close-up of aluminum foil roll with fiberglass reinforcement
Thermal insulation foil roll in industrial application
Aluminum foil roll with protective packaging
Reflective coating detail of thermal insulation foil
Thermal insulation foil roll being measured
Aluminum foil roll cross-section showing layered construction
Thermal insulation foil in construction application
Industrial packaging of thermal insulation rolls
Quality inspection of aluminum foil rolls
Thermal insulation foil roll with measurement tools
Reflective surface detail of insulation material
Aluminum foil roll in warehouse storage
Thermal insulation foil being applied in construction
Close-up of foil roll edge showing layered construction
Industrial pallet of thermal insulation rolls
Thermal insulation foil roll with specifications label
Thermal insulation aluminum foil product certification
Quality control testing of insulation material
Industrial application of thermal insulation foil
