Aluminum Foil Roll Film
>
High-Barrier Paper-Feel Composite Film ≤0.5 G/m²·day MVTR & ISO 22000/HACCP

High-Barrier Paper-Feel Composite Film ≤0.5 G/m²·day MVTR & ISO 22000/HACCP

Brand Name: Bright Pack
Model Number: B010
MOQ: 100pcs
Price: 0.03-0.1usd/pc
Payment Terms: T/T,Western Union
Supply Ability: 200000pcs/day
Detail Information
Place of Origin:
Guangdong,China
Certification:
patent for invention、BRC、GRS
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Packaging Details:
Export special carton packaging and plate
Supply Ability:
200000pcs/day
Highlight:

115MM Height Composite Film

,

Paper Feel Composite Film

,

High Barrier Composite Film

Product Description
High-Barrier Paper-Feel Composite Film ≤0.5 G/m²·day MVTR & ISO 22000/HACCP
Product Attributes
Attribute Specification
Material Composition 3-layer co-extruded structure: PET (outer layer)/EVOH/PE (sealant layer) with paper-like textured surface. Optional metallized aluminum coating for enhanced UV/oxygen resistance.
Certifications ISO 22000, HACCP, BRCGS Packaging Grade AA+, FDA 21 CFR 177.1390 (food contact), FSC® certified (on request).
Barrier Performance
  • Moisture vapor transmission rate (MVTR): ≤0.5 g/m²*day (ASTM E96)
  • Oxygen transmission rate (OTR): ≤1.0 cm³/m²*day*atm (ASTM D3985)
Mechanical Properties
  • Puncture resistance: ≥2.5 J/mm
  • Heat-seal strength: ≥3.5 N/15mm (110-150°C)
  • Surface friction coefficient (COF): 0.2 -0.3
Customization
  • Width: 100 -2,800 mm
  • Thickness: 50 -200 μm
  • Pre-printed QR codes/Pantone-matched designs (low-VOC inks)
Sustainability Recyclable PE layer (mono-material compatibility); GRS-certified recycled PET/PE available (15-20% post-consumer content).
Product Specifications
Parameter Details
Dimensions
  • Roll width: 100 -2,800 mm (±0.5% tolerance)
  • Roll length: 500 -5,000 m per roll
Layer Configuration PET (12-25 μm) / EVOH (5-8 μm) / PE sealant (30-50 μm). Optional adhesive layer for metallized reinforcement.
Temperature Range
  • Storage: -30°C to 50°C
  • Heat-sealing: 110 -150°C
  • Retort compatibility: Non-retort grade
Printing & Coating 6-8 color flexographic printing with FDA-compliant inks; anti-static coating available (surface resistivity 10⁹-10¹² Ω/sq).
MOQ & Packaging
  • MOQ: 3,000 rolls (standard), 5,000 rolls (custom designs)
  • Vacuum-sealed on 3" cores with moisture-proof palletization
Compliance Testing Third-party tested for MVTR, OTR, heavy metals (Pb/Cd ≤5 ppm), and migration safety (EU 10/2011).
Product Images

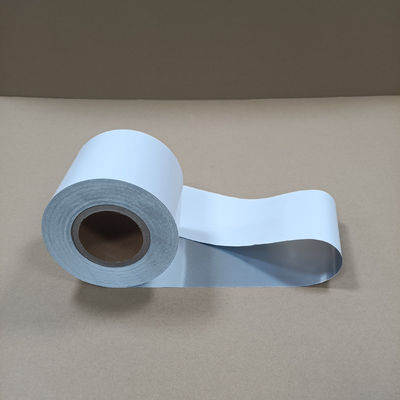

High-barrier composite film roll Close-up of paper-feel composite film texture Composite film sample with measurement tools Film production line overview Quality inspection of composite film Packaged rolls of high-barrier film Film cross-section under microscope Heat-sealing demonstration Barrier performance test setup Custom printed film samples Film thickness measurement Composite film packaging process Film roll storage facility Flexographic printing on film Film sample with certification marks Composite film application examples Sustainable packaging solutions Technical specifications diagram Material composition illustration Barrier performance comparison chart
