| Brand Name: | Bright Pack |
| Model Number: | B010 |
| MOQ: | 100pcs |
| Price: | 0.03-0.1usd/pc |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 200000pcs/day |

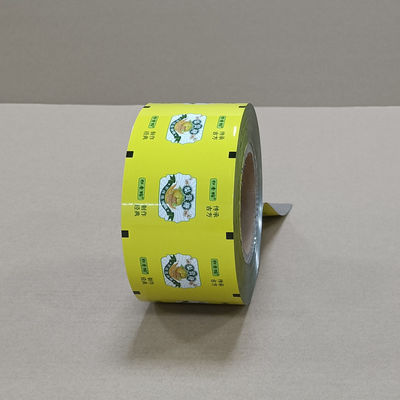

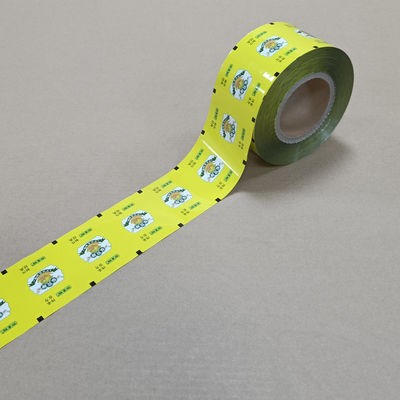

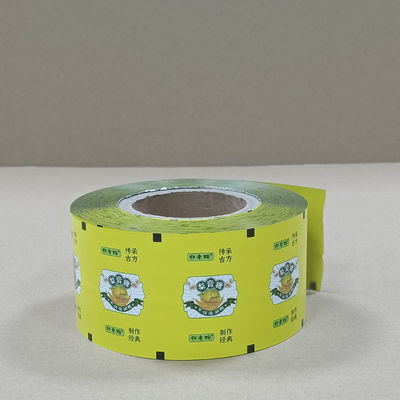

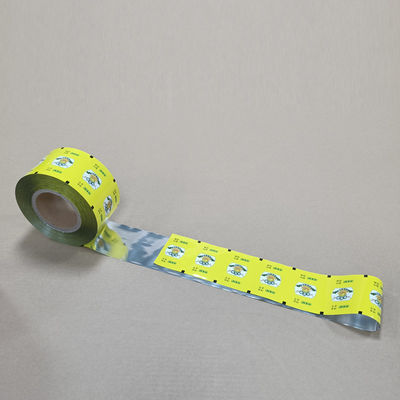

Premium moisture and oxygen barrier film with ≤0.5 cm³/m²·day transmission rate, FDA and BRCGS certified for food packaging applications.
| Attribute | Specification |
|---|---|
| Material Composition | 5-layer co-extruded structure: PET (outer layer)/Adhesive/EVOH/Adhesive/PE (sealant layer). Optional metallized aluminum reinforcement for UV/oxygen barrier enhancement. |
| Certifications | FDA 21 CFR 177.1390 (food contact), BRCGS Packaging Grade AA+ (2025 edition), ISO 22000, Halal/Kosher (optional). |
| Barrier Performance |
Oxygen transmission rate (OTR): ≤0.5 cm³/m²·day·atm (ASTM D3985)
Moisture vapor transmission rate (MVTR): ≤0.5 g/m²·day (ASTM E96)
|
| Mechanical Properties |
Puncture resistance: ≥3.0 J/mm
Heat-seal strength: ≥4.0 N/15mm (100-140°C)
Cold resistance: -30°C to 50°C
|
| Customization |
Width: 100 -1,200 mm
Thickness: 60 -200 μm
Pre-printed QR codes/FNSKU labels (Pantone-matched, low-VOC inks)
|
| Sustainability | Recyclable PE layer (mono-material design); GRS-certified recycled PET/PE available (15% post-consumer content). |
| Parameter | Details |
|---|---|
| Dimensions |
Roll width: 100 -1,200 mm (adjustable ±0.5%)
Roll length: 300 -5,000 m per roll
|
| Layer Configuration | PET (15-25 μm) / Adhesive (3-5 μm) / EVOH (6-10 μm) / Adhesive (3-5 μm) / PE sealant (30-50 μm) |
| Temperature Range |
Storage: -30°C to 50°C
Heat-sealing: 100 -140°C
Retort sterilization: Not applicable (non-retort grade)
|
| Printing & Coating | 6-8 color flexographic printing with FDA-compliant inks; optional anti-static coating (surface resistivity 10⁹-10¹² Ω/sq). |
| MOQ & Packaging |
MOQ: 3,000 rolls (standard), 5,000 rolls (custom designs)
Vacuum-sealed on 3" cores, palletized with moisture-proof wrapping
|
| Compliance Testing | Third-party tested for OTR, MVTR, heavy metals (Pb/Cd ≤5 ppm), and migration safety (EU 10/2011). |
