High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
  • High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified

High-Barrier Meat Packaging Composite Roll Film 7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified

Place of Origin Guangdong,China
Brand Name Bright Pack
Certification patent for invention、BRC、GRS
Model Number B010
Product Details
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Highlight:

BRCGS Meat Packaging Composite Roll Film

,

Meat Packaging Composite Roll Film

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
$3-3.5/kg
Packaging Details
Export special carton packaging and plate
Delivery Time
11-13work days
Payment Terms
T/T,Western Union
Supply Ability
200000pcs/day
Product Description
High-Barrier Meat Packaging Composite Roll Film
7-Layer Coex PA/EVOH/PE ≤0.5 Cm³/m²·day OTR & BRCGS Certified
Product Attributes
Material Composition 7-layer co-extruded structure: PA (outer layer) / TIE / EVOH / TIE / PE / Adhesive / PE (sealant layer). Optional metallized aluminum reinforcement for enhanced UV/oxygen resistance.
Certifications BRCGS Grade AA+ (food safety), ISO 22000, FDA 21 CFR 177.1390 (food contact), Halal/Kosher (on request).
Barrier Performance - Oxygen transmission rate (OTR): ≤0.5 cm³/m²*day*atm (ASTM D3985)
- Moisture vapor transmission rate (MVTR): ≤0.5 g/m²*day (ASTM E96)
Mechanical Properties - Puncture resistance: ≥3.5 J/mm
- Heat-seal strength: ≥4.5 N/15mm (120-160°C)
- Cold resistance: -45°C to 121°C (retort-safe)
Customization - Width: 100 -2,800 mm
- Thickness: 70 -250 μm
- Pre-printed FNSKU labels or QR codes (Pantone-matched, low-VOC inks)
Sustainability Recyclable PE layer (mono-material design); GRS-certified recycled PE available (20% post-consumer content)
Product Specifications
Dimensions - Roll width: 100 -2,800 mm (adjustable)
- Roll length: 500 -5,000 m per roll
Layer Configuration PA (12-25 μm) / Adhesive / EVOH (6-9 μm) / Adhesive / PE (50-100 μm) / Adhesive / PE sealant (30-50 μm)
Temperature Range - Storage: -45°C to 50°C
- Heat-sealing: 120 -160°C
- Retort sterilization: ≤121°C for 30 mins
Printing & Coating 8-10 color flexographic printing with FDA-compliant inks; supports anti-static coating (surface resistivity 10⁹-10¹² Ω/sq)
MOQ & Packaging - MOQ: 5,000 rolls (standard), 10,000 rolls (custom designs)
- Vacuum-sealed on 3" or 6" cores, palletized with FSC-certified boxes
Compliance Testing Third-party tested for OTR, MVTR, heavy metals (Pb/Cd ≤10 ppm), and migration safety

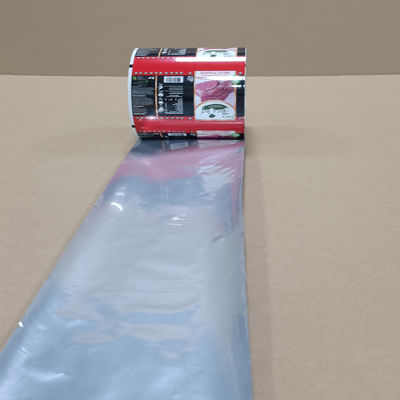

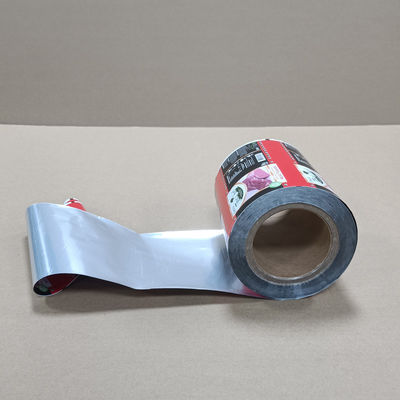

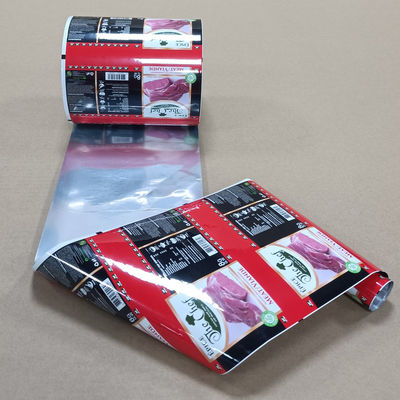

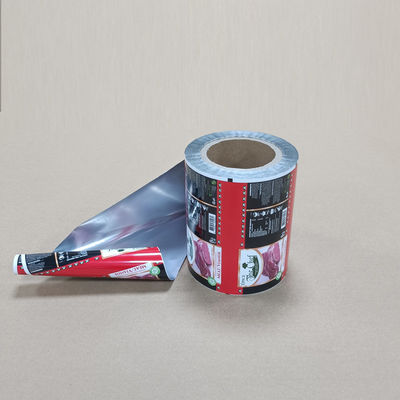

Product Images
