Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
  • Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
  • Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
  • Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
  • Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
  • Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant

Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant

Place of Origin Guangdong,China
Brand Name Bright Pack
Certification patent for invention、BRC、GRS
Model Number B010
Product Details
Customization:
Support
Colour:
Up To 10 Colour Or No Printed
Odor Proof:
Yes
Custom Order:
YES.
Colors:
CMYK/Pantone
Sample:
Free
Puncture Resistant:
Yes
Packaging Type:
Bulk Pack
Quantity Per Pack:
100
Recyclable:
Yes
Quantity:
Pack Of 100 Bags
Bag Type:
Three Side Seal Stand Up Bag
Bpa Free:
Yes
Color:
Transparent
Height:
115 MM
Highlight:

Multi-Layer Composite Film

,

Customizable Multi-Layer Composite Film

,

Oxygen Barrier Multi-Layer Composite Film

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
$3-3.5/kg
Packaging Details
Export special carton packaging and plate
Delivery Time
11-13work days
Payment Terms
T/T,Western Union
Supply Ability
200000pcs/day
Product Description
Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant
Product Attributes
Attribute Specification
Material Composition 3-7 layer co-extruded structure (PET/EVOH/PE or PET/AL/PE combinations), customizable for UV/oxygen barrier optimization
Certifications FDA 21 CFR 177.1520 (food contact), RoHS compliance (heavy metal-free), ISO 9001 & ISO 14001
Barrier Performance
  • Oxygen transmission rate (OTR): ≤0.5 cm³/m²*day*atm (ASTM D3985)
  • UV blocking: ≥97% (ASTM D4329)
Customization Options Adjustable thickness (12-250 µm), width (10-3,000 mm), and printing (up to 10 colors with Pantone matching)
Sealing & Durability
  • Heat-seal strength: ≥4.5 N/15mm (120-160°C)
  • Puncture resistance: ≥3.5 J/mm
  • Cold resistance: -40°C
Sustainability Recyclable PE layer option; GRS-certified recycled PET available (20% post-consumer content)
Product Specifications
Parameter Details
Dimensions
  • Width: 10-3,000 mm (customizable)
  • Length: 500-36,000 m per roll
Thickness Total: 12-250 µm (e.g., PET 12-25 µm + EVOH 6-9 µm + PE 50-100 µm)
Barrier Layer EVOH or metallized aluminum layer for OTR ≤0.5 cm³/m²*day and UV blocking ≥97%
Temperature Resistance
  • Storage: -40°C to 50°C
  • Heat-sealing range: 120-160°C
Printing & Coating 8-10 color flexographic printing with low-VOC, FDA-compliant inks; supports QR codes and branding
MOQ & Packaging
  • MOQ: 5,000 rolls (standard), 10,000 rolls (custom designs)
  • Vacuum-sealed on 3" or 6" cores, palletized with FSC-certified boxes
Compliance Testing Third-party tested for OTR, UV resistance, heavy metals (Pb, Cd ≤10 ppm), and migration safety

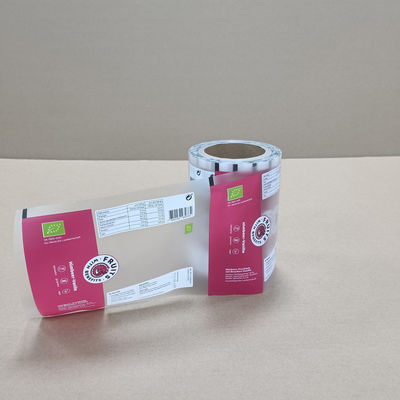

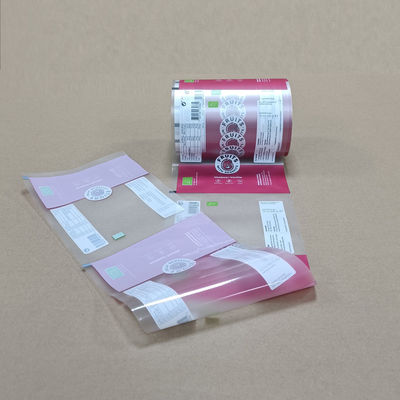

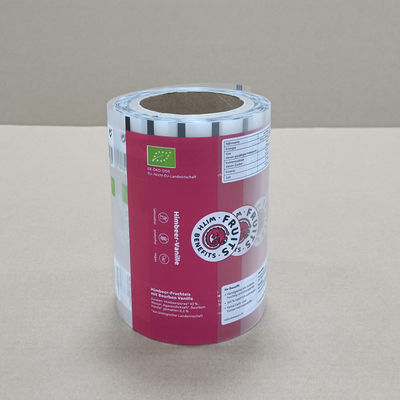

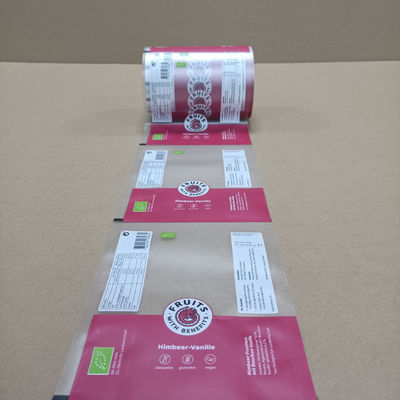

Product Images
Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 0 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 1 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 2 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 3 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 4 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 5 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 6 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 7 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 8 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 9 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 10 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 11 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 12 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 13 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 14 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 15 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 16 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 17 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 18 Customizable Multi-Layer Composite Film UV / Oxygen Barrier ≤0.5 Cm³/m²·day FDA & RoHS Compliant 19
